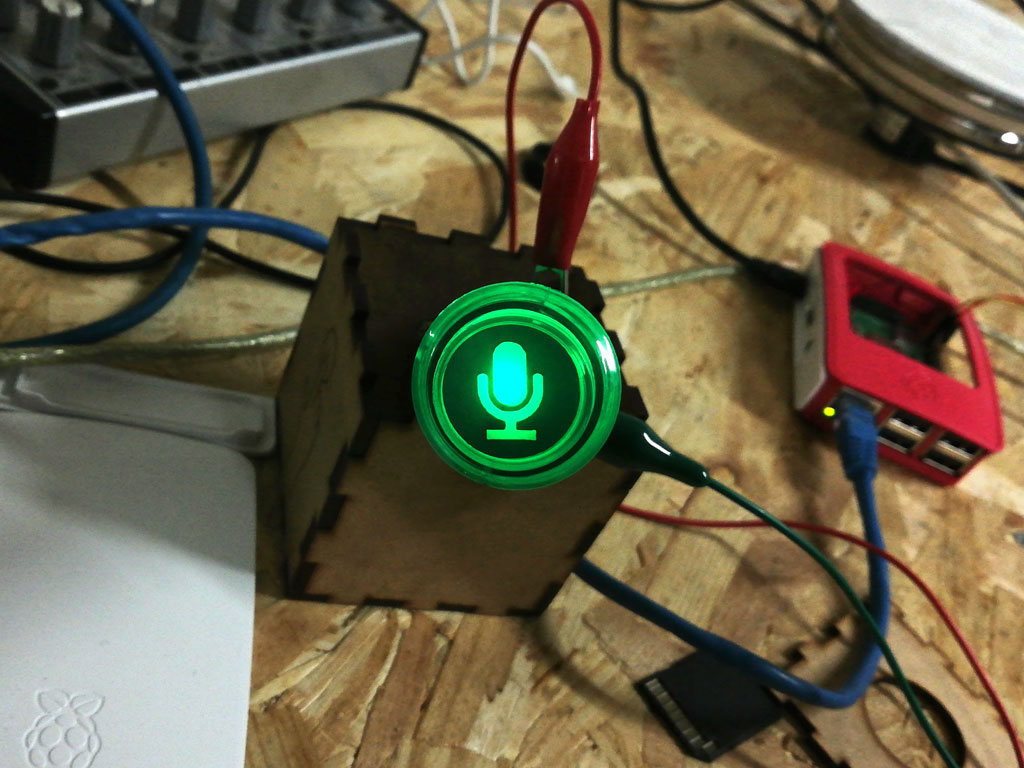

Utilisation d'un encoder photo-electrique de (400 pas/tour) pour se balader dans une table audio d'un patch puredata. |
/*************************************************** Two phase quadrature encoder(Incremental) * **************************************************** To determine motor with encode (CW OR CCW) @author Dong @version V1.0 @date 2016-5-26 All above must be included in any redistribution * ****************************************************/ #define A_PHASE 2 // modified #define B_PHASE 3 double flag_A = 0; //Assign a value to the token bit double flag_B = 0; //Assign a value to the token bit double pos = 0; double newpos = 0; /** * */ // set pin numbers: const int buttonPin = 8; // the number of the pushbutton pin const int ledPin = 13; // the number of the LED pin // variables will change: int buttonState = 0; // variable for reading the pushbutton status int previousButtonState = 0; void setup() { // initialize the LED pin as an output: pinMode(ledPin, OUTPUT); // initialize the pushbutton pin as an input: pinMode(buttonPin, INPUT_PULLUP); // pinMode(A_PHASE, INPUT); pinMode(B_PHASE, INPUT); Serial.begin(9600); //Serial Port Baudrate: 9600 //Interrupt trigger mode: RISING attachInterrupt(digitalPinToInterrupt( A_PHASE), interrupt, RISING); previousButtonState = digitalRead(buttonPin); } void loop() { if (pos != newpos){ Serial.print("enc "); Serial.println(pos); delay(10);// Direction judgement newpos = pos; } // // read the state of the pushbutton value: buttonState = digitalRead(buttonPin); // check if the pushbutton is pressed. // if it is, the buttonState is HIGH: if (buttonState == HIGH && previousButtonState == LOW) { // turn LED on: digitalWrite(ledPin, HIGH); Serial.println("btn 1"); delay(20); } if (buttonState == LOW && previousButtonState == HIGH) { // turn LED off: digitalWrite(ledPin, LOW); Serial.println("btn 0"); delay(20); } previousButtonState = buttonState; } void interrupt()// Interrupt function { char i; i = digitalRead( B_PHASE); if (i == 1) { flag_A += 1; } else { flag_B += 1; } pos = flag_A - flag_B; }
