prepa Chimeres 2020

Fichiers : lien
Lien : lien vers un site éventuellement

Paramétrer le routeur

Appuyer sur reset pour remettre la config par défaut
Vérifier IP : 192.168.0.1
Paramétrer réseau wifi : chimereswifi, mdp: chimeres666

Installation de UDOObuntu (UDOO Quad)

// Télécharger udoobuntu-udoo-qdl-desktop_2.2.0.img
  - sudo apt-get update
  - sudo apt-get upgrade
  - sudo apt-get dist-upgrade (si besoin)

Adresse IP statique

Interface Udoo Web Configuration pour mettre l'addresse en statique : 192.168.0.101

Installation de Pure Data armhf

install pd

- sudo apt-get install build-essential automake autoconf libtool gettext
libasound2-dev tcl tk libjack-jackd2-dev (si besoin pour Gem : libftgl2)
  - git clone https://github.com/pure-data/pure-data
  - ./autogen.sh
  - ./configure
  - make
  - sudo make install

## Pd libs (à vérifier)

zexy
cyclone
iemguts
iemlib

sudo apt-get install pd-zexy pd-iemlib

Maj code Arduino

framagit.org/resonance/chimeres-orchestra

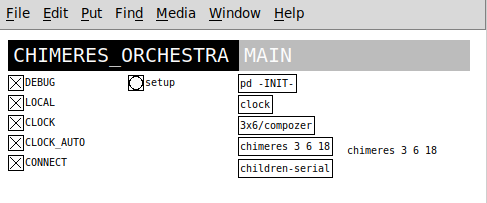

test launch main.pd en solo depuis le dossier software

info console pd

getdir
... couldn't create
 canvasdelete 2
... couldn't create
 getdir
... couldn't create
 splitfilename /
... couldn't create
 initbang
... couldn't create
 splitfilename x
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 initbang
... couldn't create
 canvasdelete 1
... couldn't create
 seq
... couldn't create
 midiparse
... couldn't create
 time
... couldn't create
 l2s
... couldn't create
 comport 0 38400
... couldn't create
 canvasdelete 2
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
 initbang
... couldn't create
CHIMERES: load
text sequence: line number 0 out of range

manque qqles libs…

launch main.pd depuis la malinette

console pd

https://reso-nance.org/wiki/lib/images/toolbar/hplus.png

[completion-plugin] version 0.46.0
[completion-plugin] finished scanning externals
'completion-plugin.tcl' already loaded, ignoring: '/home/ed/Documents/malinette-soft-linux-master/externals/completion-plugin/completion-plugin.tcl'
priority 6 scheduling failed; running at normal priority
opened 0 MIDI input device(s) and 0 MIDI output device(s).
JACK: Failure.  Is JACK running?
GEM: Graphics Environment for Multimedia
GEM: ver: 0.93.3
GEM: compiled on 2018/02/01 at 21:58:19 UTC
GEM: maintained by IOhannes m zmoelnig
GEM: Authors :	Mark Danks (original version)
GEM:		Chris Clepper
GEM:		Cyrille Henry
GEM:		IOhannes m zmoelnig
GEM: with help by Guenter Geiger, Daniel Heckenberg, James Tittle, Hans-Christoph Steiner, et al.
GEM: found a bug? miss a feature? please report it:
GEM: 	homepage https://gem.iem.at/
GEM: 	bug-tracker https://bugs.gem.iem.at/
GEM: 	mailing-list https://lists.puredata.info/listinfo/gem-dev/
GEM: compiled for SIMD architecture: SSE2 MMX
GEM: using SSE2 optimization

	♡♡♡
	♡ the zexy external  2.2.6svn
	♡ (c) 1999-2012 IOhannes m zmölnig
	♡       forum::für::umläute
	♡       iem   @  kug
	♡  compiled:  Jul  3 2015
	♡ send me a 'help' message
	♡♡♡

matchbox: OSC-pattern matching code (c) Matt Wright, CNMAT
comport - PD external for unix/windows
LGPL 1998-2012,  Winfried Ritsch and others (see LICENSE.txt)
Institute for Electronic Music - Graz
[comport] ** ERROR ** could not get termios-structure of device /dev/ttyS0

[comport] opening serial port 0 failed!
pmenu v0.31 by tof
pmenu v0.31 by tof
[arduino]: version 0.6beta
Malinette: Welcome to the Malinette
Malinette: Stay Free & Share ! - reso-nance.org
JACK: Failure.  Is JACK running?
[comport] ** ERROR ** could not get termios-structure of device /dev/ttyS0

[comport] opening serial port 0 failed!
***CLOCK_OPENED***: 1
connecting to port 9001
COMM_COMPOZER_CONNECTED?: 1
ARDUINO-OPEN: 0
CHIMERES: load
ARM_0: 0 30 70 60 70 20 20
ARM_1: 1 30 70 60 70 20 20
ARM_2: 2 30 70 60 70 20 20
ARM_3: 3 30 70 60 70 20 20
ARM_4: 4 30 70 60 70 20 20
ARM_5: 5 30 70 60 70 20 20
ARM_6: 10 30 70 60 70 20 20
ARM_7: 11 30 70 60 70 20 20
ARM_8: 12 30 70 60 70 20 20
ARM_9: 13 30 70 60 70 20 20
ARM_10: 14 30 70 60 70 20 20
ARM_11: 15 30 70 60 70 20 20
ARM_12: 20 30 70 60 70 20 20
ARM_13: 21 30 70 60 70 20 20
ARM_14: 22 30 70 60 70 20 20
ARM_15: 23 30 70 60 70 20 20
ARM_16: 24 30 70 60 70 20 20
ARM_17: 25 30 70 60 70 20 20
COMM_MAIN_CONNECTED?: 1
[comport] ** ERROR ** could not open device /dev/ttymxc3:
 failure(2): No such file or directory

***CLOCK***: 1
seq: reading midi/1.mid
***CLOCK_QUARTER***: 1
CHIMERES: 0 0.787402
ARM_0: 0.787402
COMM_MAIN: CHIMERES 0 0.787402
CHILDREN_OSC_0: 0 30 69
CHIMERES: 3 3.14961
ARM_3: 3.14961
COMM_MAIN: CHIMERES 3 3.14961
CHILDREN_OSC_0: 3 31 69
CHIMERES: 1 0.787402
ARM_1: 0.787402
COMM_MAIN: CHIMERES 1 0.787402
CHIMERES: 2 3.93701
ARM_2: 3.93701
COMM_MAIN: CHIMERES 2 3.93701
CHILDREN_OSC_0: 1 30 69
CHILDREN_OSC_0: 2 31 69
CHIMERES: 16 7.87402
ARM_16: 7.87402
COMM_MAIN: CHIMERES 16 7.87402
CHILDREN_OSC_2: 4 33 69
CHIMERES: 17 7.87402
ARM_17: 7.87402
COMM_MAIN: CHIMERES 17 7.87402
CHILDREN_OSC_2: 5 33 69
CHIMERES: 0 7.87402
ARM_0: 7.87402
COMM_MAIN: CHIMERES 0 7.87402
CHILDREN_OSC_0: 0 33 69
CHIMERES: 3 7.87402
ARM_3: 7.87402
COMM_MAIN: CHIMERES 3 7.87402
CHILDREN_OSC_0: 3 33 69
CHIMERES: 1 7.87402
ARM_1: 7.87402
COMM_MAIN: CHIMERES 1 7.87402
CHILDREN_OSC_0: 1 33 69
CHIMERES: 2 7.87402
ARM_2: 7.87402
COMM_MAIN: CHIMERES 2 7.87402
CHILDREN_OSC_0: 2 33 69
CHIMERES: 16 7.87402
ARM_16: 7.87402
COMM_MAIN: CHIMERES 16 7.87402
CHILDREN_OSC_2: 4 33 69
CHIMERES: 17 7.87402
ARM_17: 7.87402
COMM_MAIN: CHIMERES 17 7.87402
CHILDREN_OSC_2: 5 33 69
CHIMERES: 15 7.87402
ARM_15: 7.87402
COMM_MAIN: CHIMERES 15 7.87402
CHILDREN_OSC_2: 3 33 69
CHIMERES: 12 7.87402
ARM_12: 7.87402
COMM_MAIN: CHIMERES 12 7.87402
CHILDREN_OSC_2: 0 33 69
CHIMERES: 13 7.87402
ARM_13: 7.87402
COMM_MAIN: CHIMERES 13 7.87402
CHILDREN_OSC_2: 1 33 69
CHIMERES: 14 7.87402
ARM_14: 7.87402
COMM_MAIN: CHIMERES 14 7.87402
CHILDREN_OSC_2: 2 33 69
CHIMERES: 4 7.87402
ARM_4: 7.87402
COMM_MAIN: CHIMERES 4 7.87402
CHILDREN_OSC_0: 4 33 69
CHIMERES: 7 7.87402
ARM_7: 7.87402
COMM_MAIN: CHIMERES 7 7.87402
CHILDREN_OSC_1: 1 33 69
CHIMERES: 5 7.87402
ARM_5: 7.87402
COMM_MAIN: CHIMERES 5 7.87402
CHILDREN_OSC_0: 5 33 69
CHIMERES: 6 7.87402
ARM_6: 7.87402
COMM_MAIN: CHIMERES 6 7.87402
CHILDREN_OSC_1: 0 33 69
CHIMERES: 8 7.87402
ARM_8: 7.87402
COMM_MAIN: CHIMERES 8 7.87402
CHILDREN_OSC_1: 2 33 69
CHIMERES: 11 7.87402
ARM_11: 7.87402
COMM_MAIN: CHIMERES 11 7.87402
CHILDREN_OSC_1: 5 33 69
CHIMERES: 9 7.87402
ARM_9: 7.87402
COMM_MAIN: CHIMERES 9 7.87402
CHILDREN_OSC_1: 3 33 69
CHIMERES: 10 7.87402
ARM_10: 7.87402
COMM_MAIN: CHIMERES 10 7.87402
CHILDREN_OSC_1: 4 33 69
CHIMERES: 16 7.87402
ARM_16: 7.87402
COMM_MAIN: CHIMERES 16 7.87402
CHILDREN_OSC_2: 4 33 69
CHIMERES: 17 7.87402
ARM_17: 7.87402
COMM_MAIN: CHIMERES 17 7.87402
CHILDREN_OSC_2: 5 33 69
netsend_connect: bad arguments
CHILDREN_OSC_2: connect localhost 9103
netsend_connect: bad arguments
CHILDREN_OSC_1: connect localhost 9102
netsend_connect: bad arguments
CHILDREN_OSC_0: connect localhost 9101
CHIMERES: 16 7.87402
ARM_16: 7.87402
COMM_MAIN: CHIMERES 16 7.87402
CHILDREN_OSC_2: 4 33 69
CHIMERES: 17 7.87402
ARM_17: 7.87402
COMM_MAIN: CHIMERES 17 7.87402
CHILDREN_OSC_2: 5 33 69
CHIMERES: 15 7.87402
ARM_15: 7.87402
COMM_MAIN: CHIMERES 15 7.87402

ça dit un tas de trucs sans cesse.
ci-dessous les erreurs qui surviennent qd le main.pd essaie de se connecter.
le toggle CONNECT passe a l'etat on tout seul apres un moment ?:

erreur console

[comport] ** ERROR ** could not open device /dev/ttymxc3:
 failure(2): No such file or directory

netsend_connect: bad arguments
CHILDREN_OSC_2: connect localhost 9103
netsend_connect: bad arguments
CHILDREN_OSC_1: connect localhost 9102
netsend_connect: bad arguments
CHILDREN_OSC_0: connect localhost 9101
